Bands
CALIBRA Anatomical Molar Bands
First and second molar bands in hard heat-treated stainless steel: 32 to 36 sizes per quadrant, graduated thickness, rough inner surface.
E1200E1300E1600E1700E2200E2300E2600E2700
Available in 36 right sizes and 36 left sizes for the first molar, and 32 right and 32 left for the second, either for maxillary or mandibular arch, each with a laser etched identification number.
Three things do the work. The hard temper gives the band the stiffness to hold anchorage. The anatomical design means the band follows the tooth instead of being forced onto it. The diversified thickness means the metal is where the tooth is wide and thin where the contact is tight. A rough inner surface finish then improves cement retention — the combination is what makes band selection easy and seating reliable.

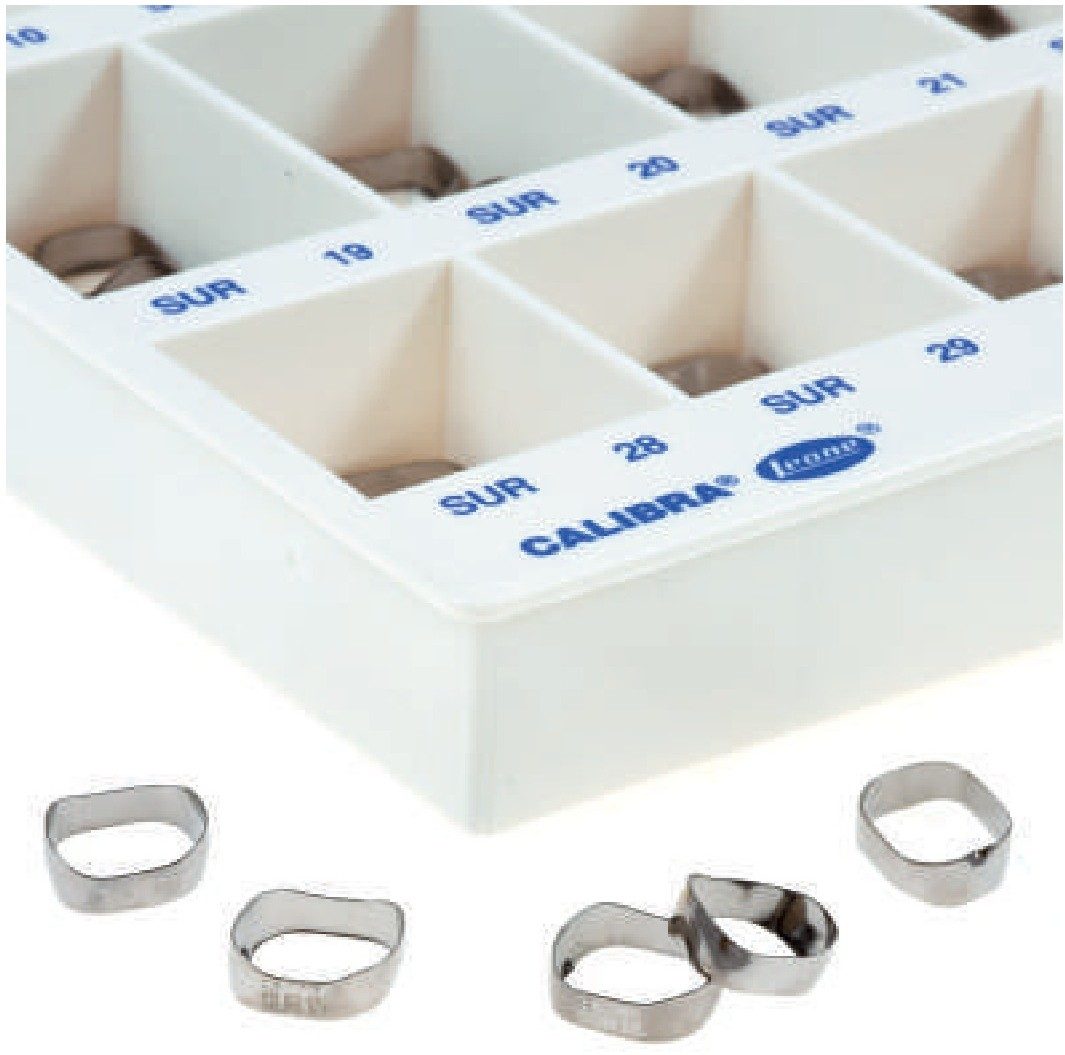

Autoclavable trays hold the assortments, so the whole kit can be sterilised between patients rather than being a cross-infection risk.
Ordering: always specify the size, e.g. E1200-06.
Technical specifications
| Material | Hard heat-treated stainless steel |
|---|---|
| Thickness | Graduated thickness by variation in tooth size |
| Inner surface | Rough inner surface finish — maximum stability and increased cement retention |
| Design | Anatomically correct, anatomically correct wide range of sizes |
| 1st molar sizes | 36 right and 36 left sizes, upper and lower |
| 2nd molar sizes | 32 right and 32 left sizes, upper and lower |
| Identification | Laser etched identification number, survives high-temperature sterilisation |
| 1st molar references | E1205-00 upper right UR · E1305-00 upper left UL · E1605-00 lower right LR · E1705-00 lower left LL |
| 2nd molar references | E2205-00 upper right SUR · E2305-00 upper left SUL · E2605-00 lower right SLR · E2705-00 lower left SLL |
| Packaging | Pack of 5, or pack of 10 for some references |

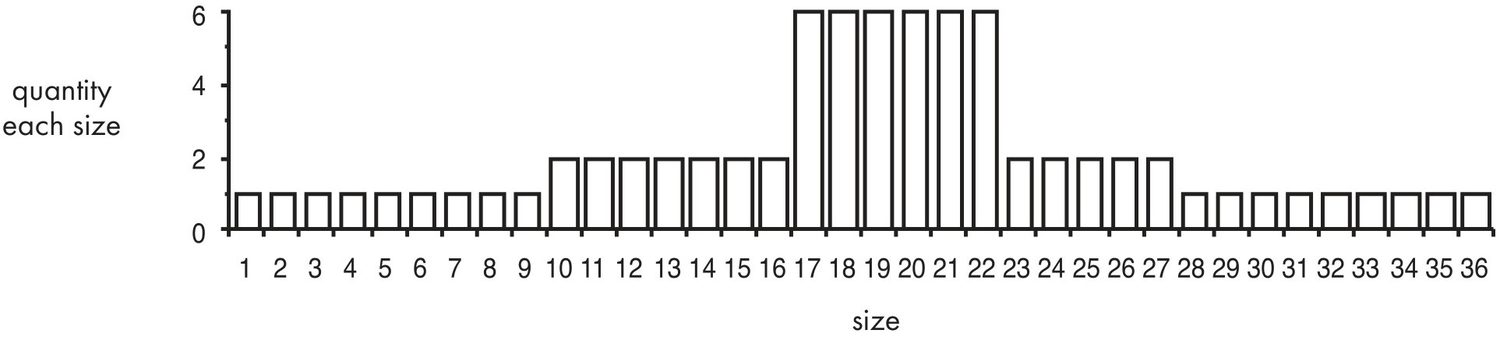

| 1st molar assortment | E1200-92 / E1300-92 / E1600-92 / E1700-92 — 92 bands on average use |

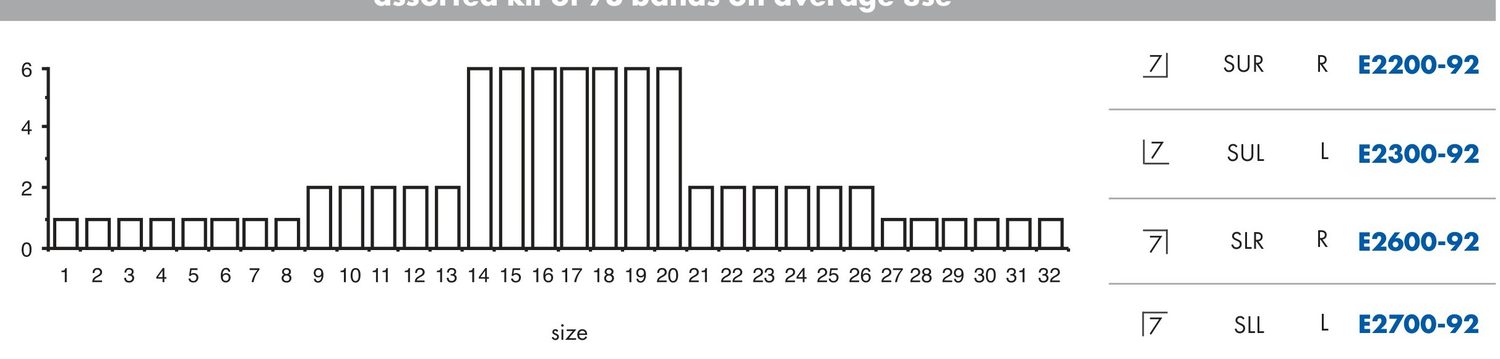

| 2nd molar assortment | E2200-92 / E2300-92 / E2600-92 / E2700-92 — assorted kit of 78 bands |
| Ordering | Always specify the size, e.g. E1200-06 |
